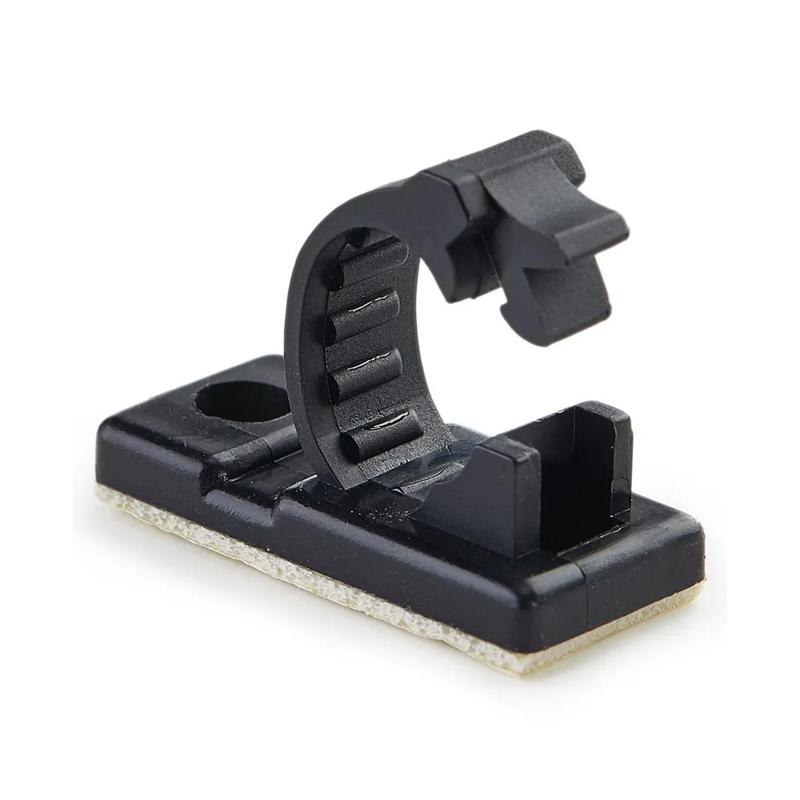

SR1789 - Adhesive/Screw Fixing Cable Clamps
Flammability rating UL94 V2. Backed with high-quality adhesive tape.
Showing 1-6 of 6
Per page:1-6 of 6

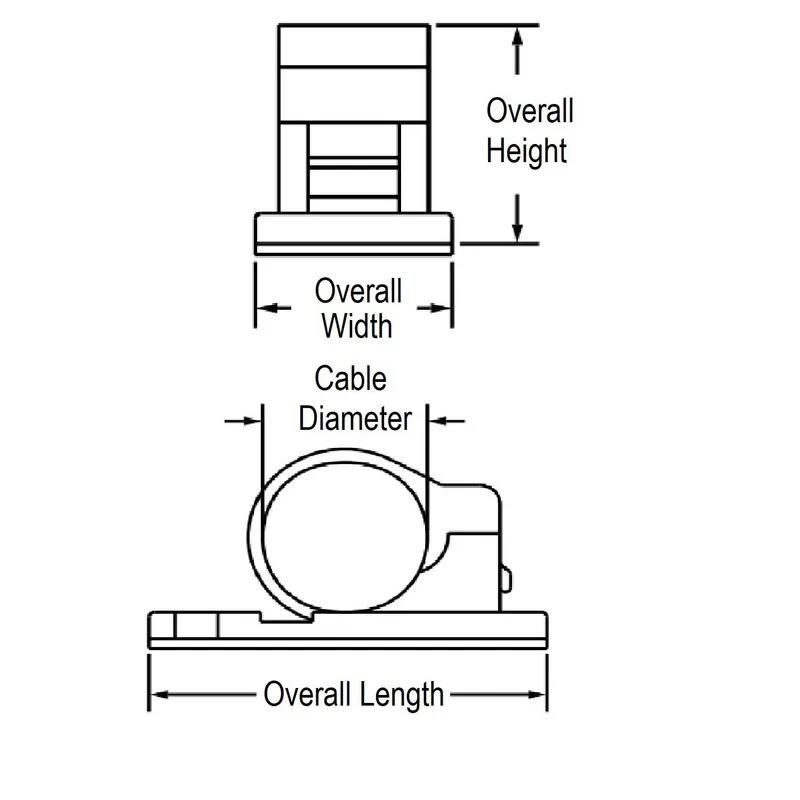

Item Code | Material Flammability Standard | Colour | Material | Overall Width | Overall Length | Mounting Hole Diameter | Adhesive Material | Cable Diameter | Overall Height | Adjustability | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
460289 | UL94 V-2 | Black | Nylon 6/6 | 16.4mm | 35.5mm | 4.4mm | Acrylic | 12.0mm | 16.5mm | Fixed | |
460287 | UL94 V-2 | Black | Nylon 6/6 | 13.4mm | 25.8mm | 4.4mm | Acrylic | 6.0mm | 9.1mm | Fixed | |
460291 | UL94 V-2 | Black | Nylon 6/6 | 16.4mm | 38.5mm | 4.4mm | Acrylic | 16.0mm | 20.5mm | Fixed | |
460288 | UL94 V-2 | Black | Nylon 6/6 | 13.4mm | 29.4mm | 4.4mm | Acrylic | 9.0mm | 14.0mm | Fixed | |
460292 | UL94 V-2 | Black | Nylon 6/6 | 16.4mm | 42.0mm | 4.4mm | Acrylic | 18.0mm | 22.5mm | Fixed | |
460290 | UL94 V-2 | Black | Nylon 6/6 | 16.4mm | 36.5mm | 4.4mm | Acrylic | 14.0mm | 18.5mm | Fixed |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
460289
Material Flammability Standard
UL94 V-2
Colour
Black
Material
Nylon 6/6
Overall Width
16.4mm
460287
Material Flammability Standard
UL94 V-2
Colour
Black
Material
Nylon 6/6
Overall Width
13.4mm
460291
Material Flammability Standard
UL94 V-2
Colour
Black
Material
Nylon 6/6
Overall Width
16.4mm
460288
Material Flammability Standard
UL94 V-2
Colour
Black
Material
Nylon 6/6
Overall Width
13.4mm
