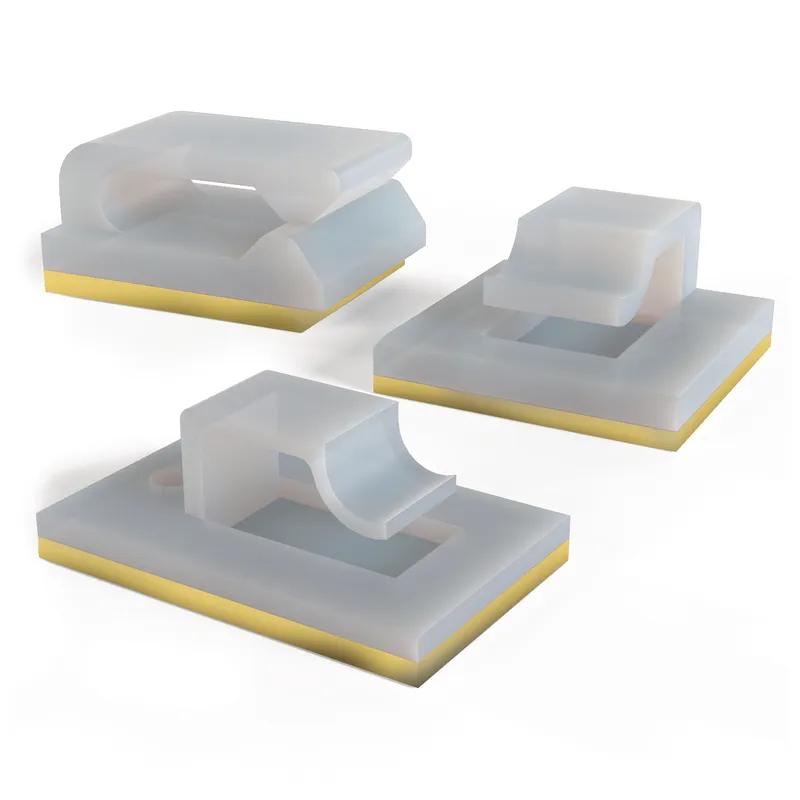

SR1788 - Self-Adhesive Cable Clips
Strong adhesion for quick and easy installation. Ideal for lightweight wire bundles. Flammability rating UL94 V2.
Item Code | Material Flammability Standard | Colour | Material | Overall Width | Overall Length | Cable Diameter | Overall Height | Type | Mounting Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
460302 | UL94 V-2 | Natural | Nylon 6/6 | 16.0mm | 16.0mm | 3.7mm | 8.7mm | Self-Adhesive | - | |
460303 | UL94 V-2 | Natural | Nylon 6/6 | 17.0mm | 27.0mm | 5.5mm | 8.7mm | Self-Adhesive | 4.8mm | |
460300 | UL94 V-2 | Natural | Nylon 6/6 | 9.5mm | 13.0mm | 2.8mm | 5.2mm | Self-Adhesive | - | |
460304 | UL94 V-2 | Natural | Nylon 6/6 | 15.8mm | 16.0mm | 5.8mm | 9.0mm | Self-Adhesive | - |
460302
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Overall Width
16.0mm
460303
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Overall Width
17.0mm
460300
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Overall Width
9.5mm
460304
Material Flammability Standard
UL94 V-2
Colour
Natural
Material
Nylon 6/6
Overall Width
15.8mm
