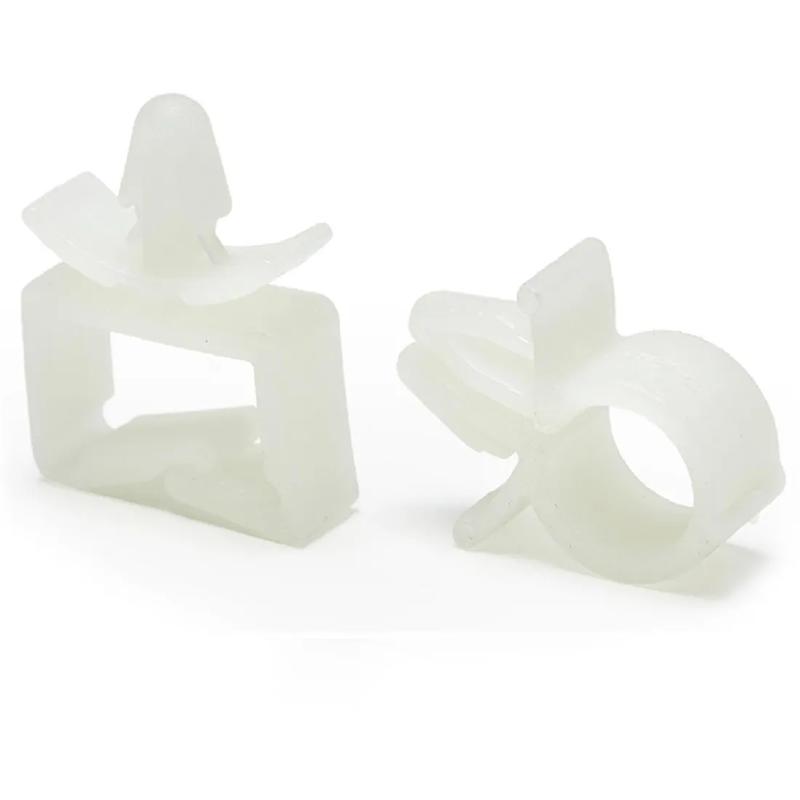

SR1783 - Push-In Wire Saddles
Easy one-push fit. One size fits a range of cable diameters. Choice of four styles. Flammability rating UL94 V2.
Showing 1-8 of 8
Per page:1-8 of 8

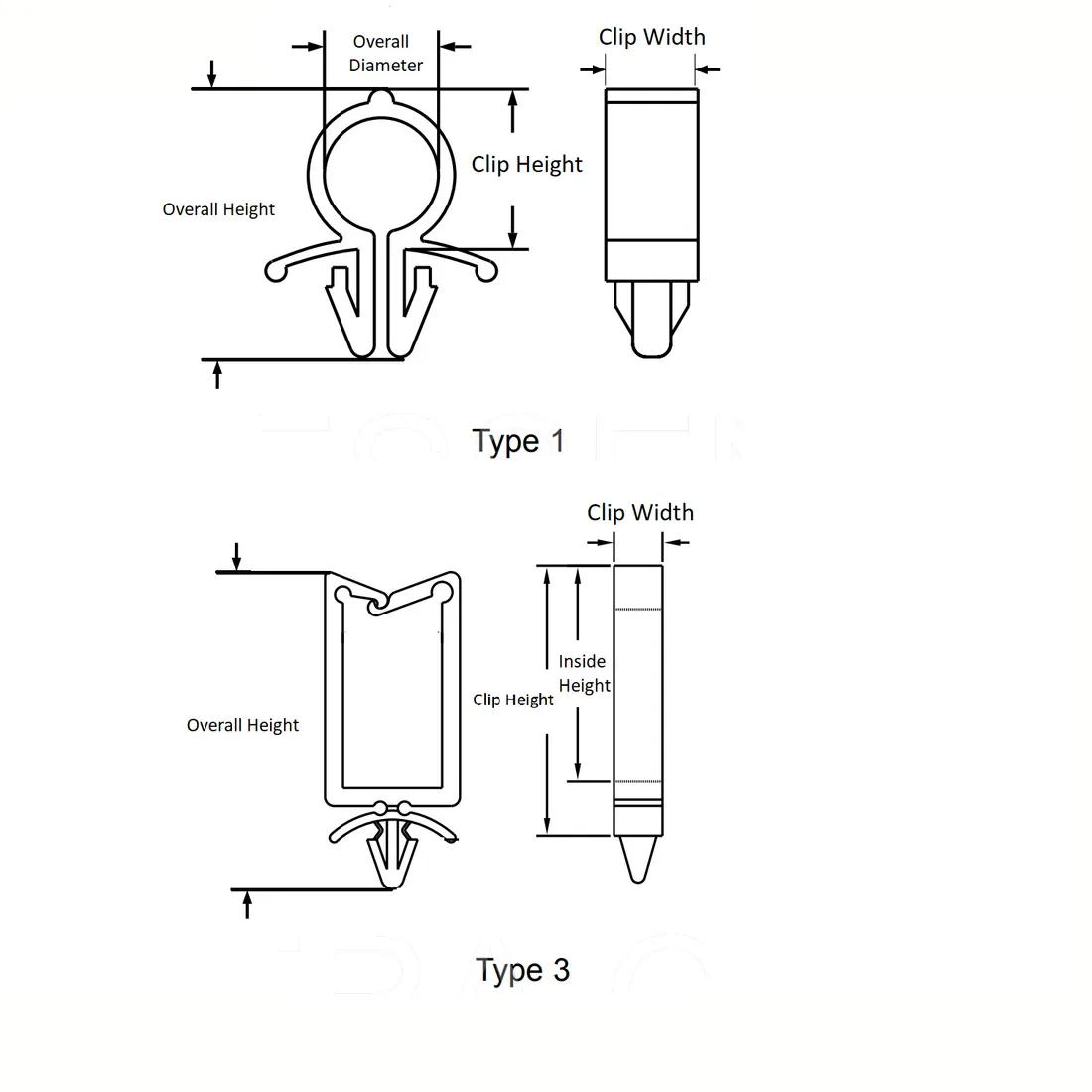

Item Code | Material Flammability Standard | Colour | Mounting Hole Diameter | Panel Thickness | Clip Height | Type | Material | Overall Diameter | Inside Height | Maximum Hole Diameter | Maximum Panel Thickness | Inside Width | Minimum Inside Diameter | Minimum Inside Diameter | Overall Height | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
460319 | UL94 V-2 | Natural | 6.2mm | 2.0mm | 11.0mm | Omega Clip | Nylon 6/6 | 7.5mm | - | - | - | - | - | - | - | - | |
460325 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 34.8mm | 2 | Nylon 6/6 | - | 26.2mm | 4.8mm | 2.0mm | 11.1mm | 26.2mm | 31.3mm | 34.8mm | 5.5mm | |
460324 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 18.0mm | 2 | Nylon 6/6 | - | 12.5mm | 4.8mm | 2.0mm | 11.1mm | 12.5mm | 15.7mm | 18.0mm | 5.5mm | |
497649 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 12.7mm | 2 | Nylon 6/6 | - | 4.0mm | 4.8mm | 2.0mm | 11.1mm | 4.0mm | 9.2mm | 12.7mm | 5.5mm | |
460321 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 12.7mm | 2 | Nylon 6/6 | - | 2.8mm | 4.8mm | 2.0mm | 11.1mm | 2.8mm | 9.2mm | 12.7mm | 5.5mm | |
497650 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 34.8mm | 2 | Nylon 6/6 | - | 26.2mm | 4.8mm | 2.0mm | 11.1mm | 26.2mm | 31.3mm | 31.3mm | 5.5mm | |
497639 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 26.9mm | 2 | Nylon 6/6 | - | 18.2mm | 4.8mm | 2.0mm | 11.1mm | 18.2mm | 23.4mm | 26.9mm | 5.5mm | |
497636 | UL94 V-2 | Natural | 4.8mm | 2.0mm | 17.9mm | 2 | Nylon 6/6 | - | 8.6mm | 4.8mm | 2.0mm | 11.1mm | 8.6mm | 11.4mm | 17.9mm | 5.5mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
460319
Material Flammability Standard
UL94 V-2
Colour
Natural
Mounting Hole Diameter
6.2mm
Panel Thickness
2.0mm
460325
Colour
Natural
Inside Height
26.2mm
Maximum Hole Diameter
4.8mm
Material
Nylon 6/6
460324
Colour
Natural
Inside Height
12.5mm
Maximum Hole Diameter
4.8mm
Material
Nylon 6/6
497649
Colour
Natural
Inside Height
4.0mm
Maximum Hole Diameter
4.8mm
Material
Nylon 6/6
Per page:
1–5 of 9
