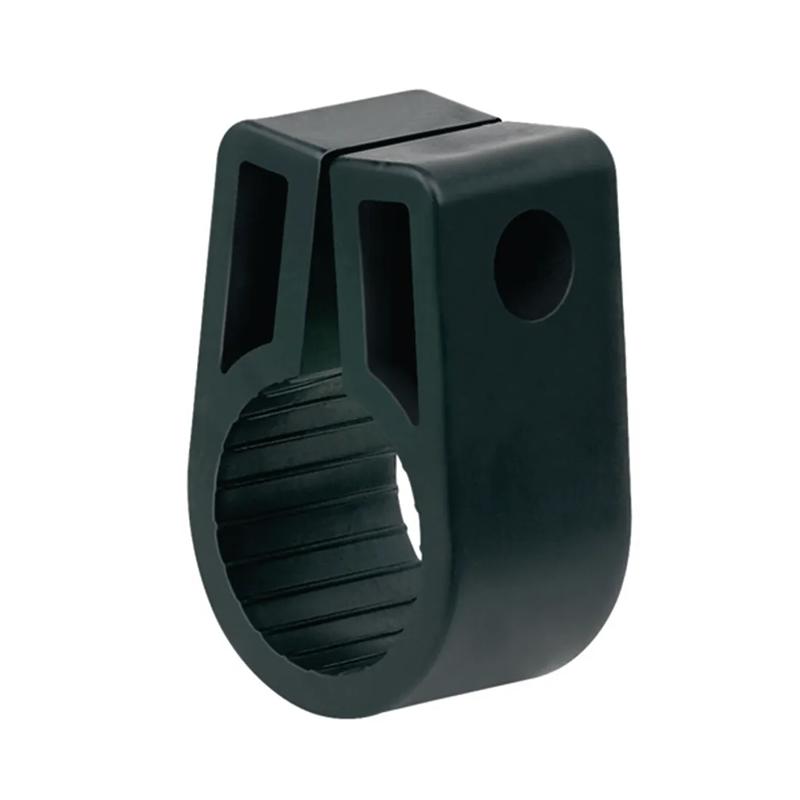

SR1780 - Standard Cleats
Mounting cleats designed to support and secure cable bundles or conduit runs to walls or panels.
Showing 1-10 of 11
Per page:1-10 of 11

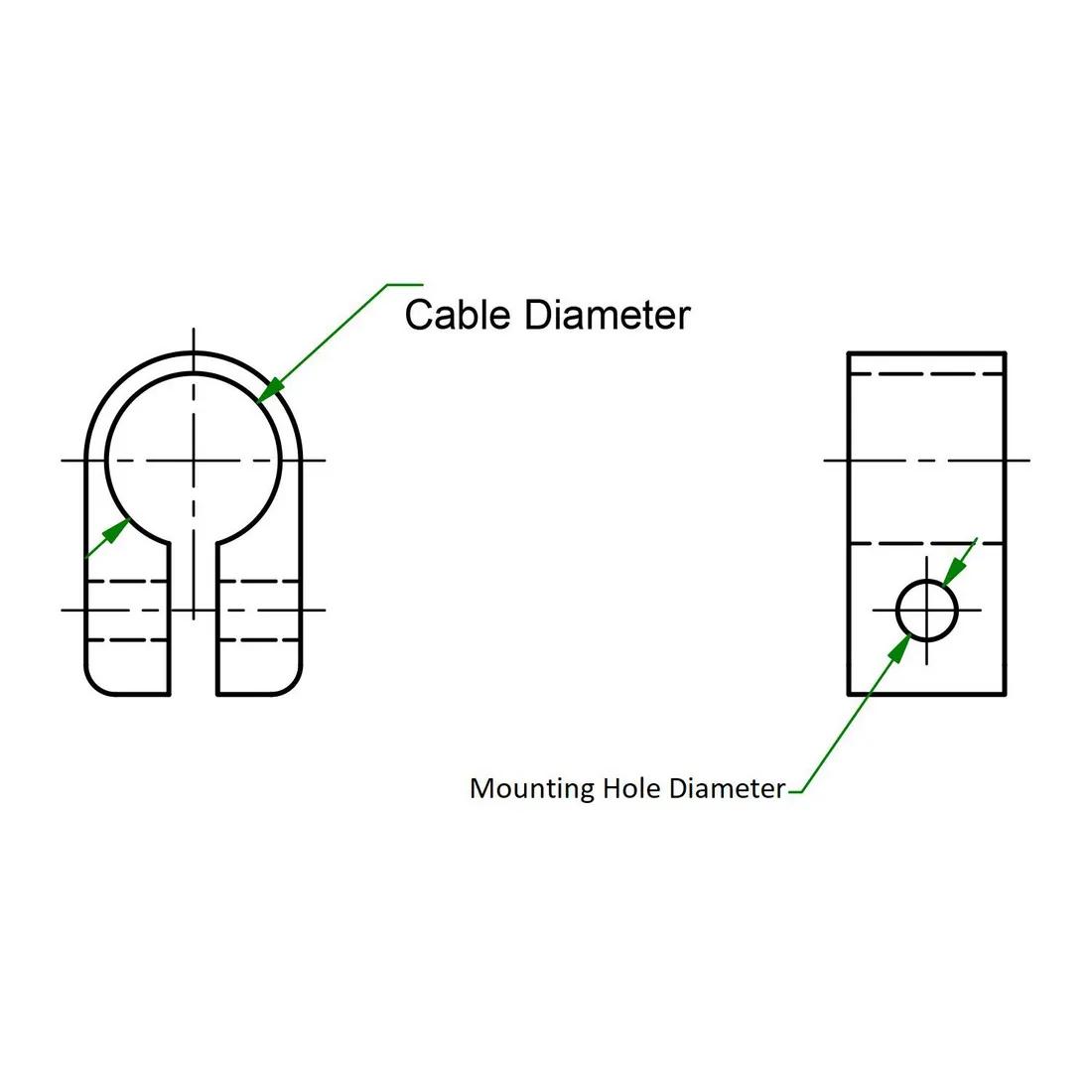

Item Code | Colour | Cleat Size | Material | Mounting Hole Diameter | Cable Diameter | Type | Request Quote |
|---|---|---|---|---|---|---|---|
12848 | Black | 6 | LDPE - PIR | 6.0mm | 15.2mm | Standard | |
12878 | Black | 7 | LDPE - PIR | 6.0mm | 17.8mm | Standard | |
12092 | Black | 11 | LDPE - PIR | 9.6mm | 27.9mm | Standard | |
12876 | Black | 4 | LDPE - PIR | 6.0mm | 10.1mm | Standard | |
12880 | Black | 9 | LDPE - PIR | 6.0mm | 22.8mm | Standard | |
12882 | Black | 12 | LDPE - PIR | 10.0mm | 30.0mm | Standard | |
12881 | Black | 10 | LDPE - PIR | 6.0mm | 25.4mm | Standard | |
12875 | Black | 3 | LDPE - PIR | 6.0mm | 7.6mm | Standard | |
12883 | Black | 14 | LDPE - PIR | 10.0mm | 35.6mm | Standard |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
12848
Colour
Black
Cleat Size
6
Material
LDPE - PIR
Mounting Hole Diameter
6.0mm
12878
Colour
Black
Cleat Size
7
Material
LDPE - PIR
Mounting Hole Diameter
6.0mm
12092
Colour
Black
Cleat Size
11
Material
LDPE - PIR
Mounting Hole Diameter
9.6mm
12876
Colour
Black
Cleat Size
4
Material
LDPE - PIR
Mounting Hole Diameter
6.0mm
Per page:
1–5 of 12
