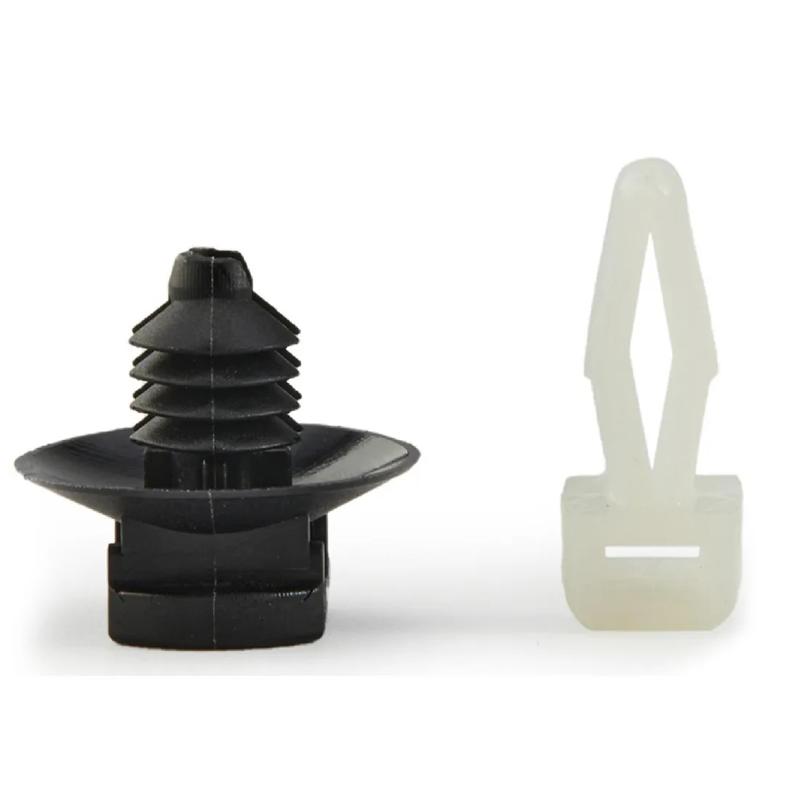

SR1720 - Push Mount Cable Tie Holder
Easy one-push fit. Flammability rating UL94 V2.
Showing 1-5 of 5
Per page:1-5 of 5

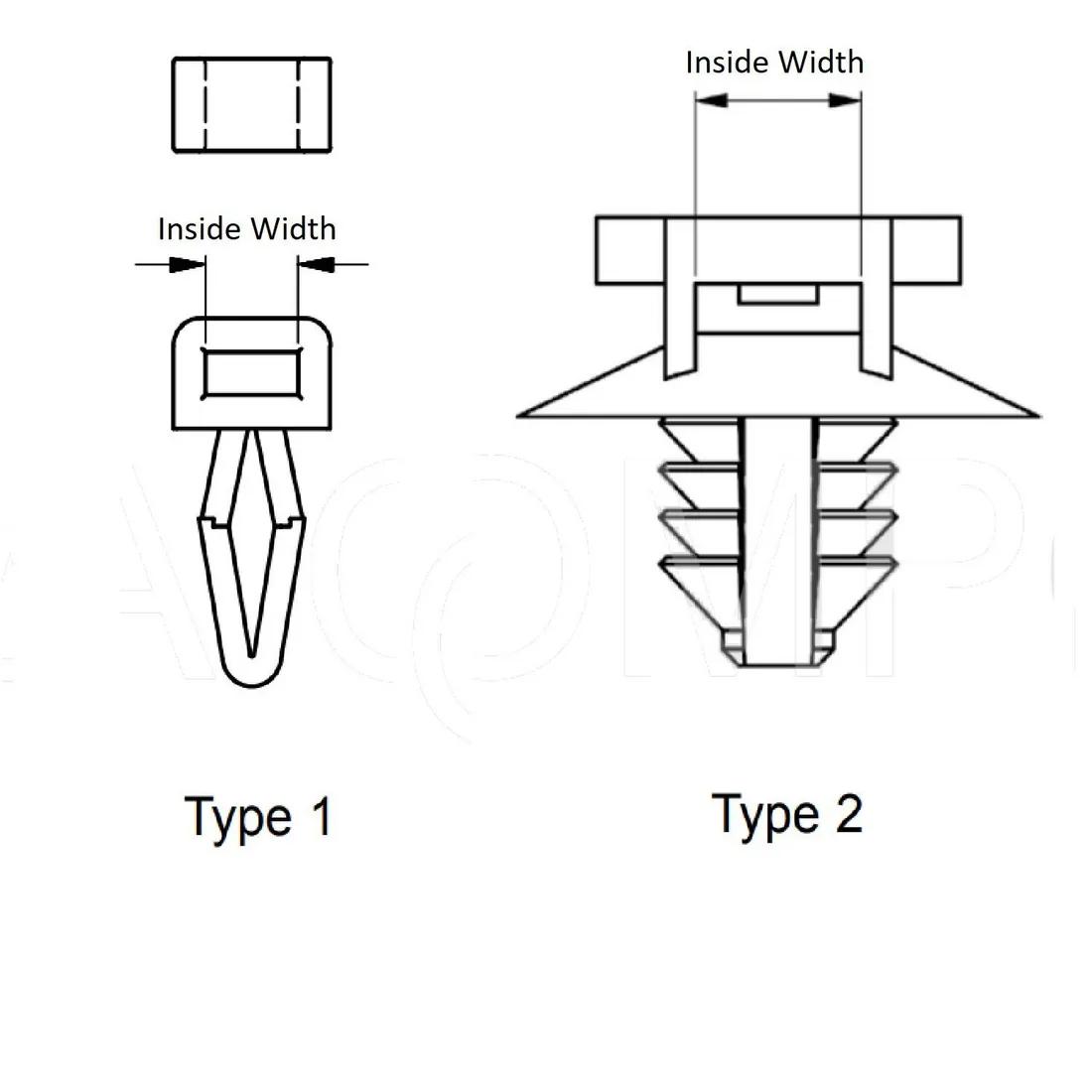

Item Code | Colour | Material | Mounting Hole Diameter | Type | Inside Width | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|
142004000002 | Natural | Nylon 6/6 | 3.2mm | 1 | 4.0mm | UL94 V-2 | |
142004059902 | Black | Nylon 6/6 | 3.2mm | 1 | 4.0mm | UL94 V-2 | |
142008059902 | Black | Nylon 6/6 | 6.4mm | 1 | 8.1mm | UL94 V-2 | |
142008000002 | Natural | Nylon 6/6 | 6.4mm | 1 | 8.1mm | UL94 V-2 | |
462716 | Black | Nylon 6/6 | 7.6mm | 2 | 5.0mm | UL94 V-2 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
142004000002
Colour
Natural
Material
Nylon 6/6
Mounting Hole Diameter
3.2mm
Type
1
142004059902
Colour
Black
Material
Nylon 6/6
Mounting Hole Diameter
3.2mm
Type
1
142008059902
Colour
Black
Material
Nylon 6/6
Mounting Hole Diameter
6.4mm
Type
1
142008000002
Colour
Natural
Material
Nylon 6/6
Mounting Hole Diameter
6.4mm
Type
1
