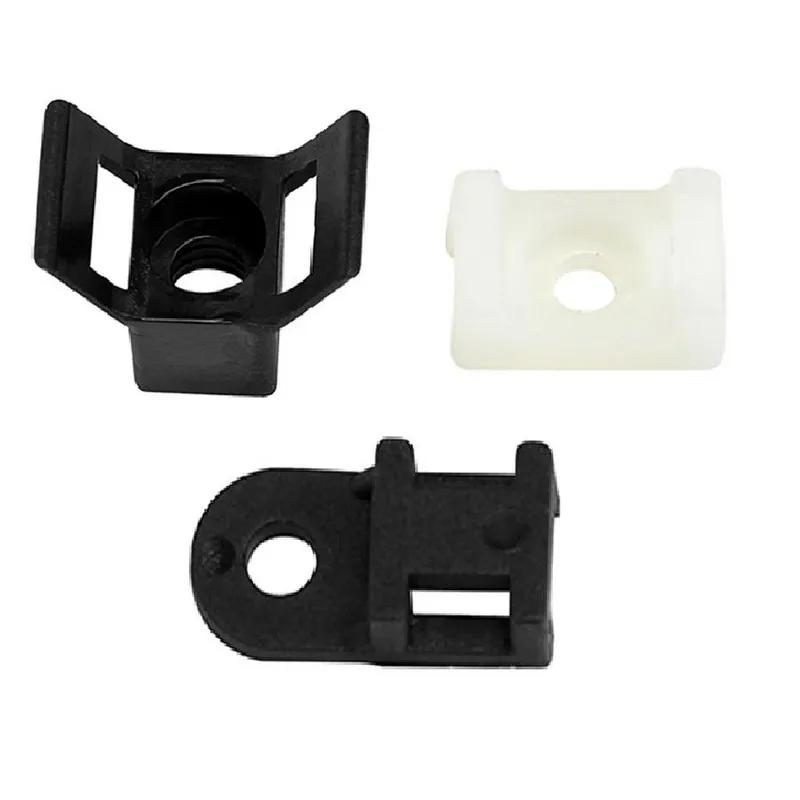

SR1719 - Screw Mount Cable Tie Holder
Easy screw fixing. Give maximum stability to wire bundle. Flammability rating UL94 V2.
Showing 1-10 of 10
Per page:1-10 of 10

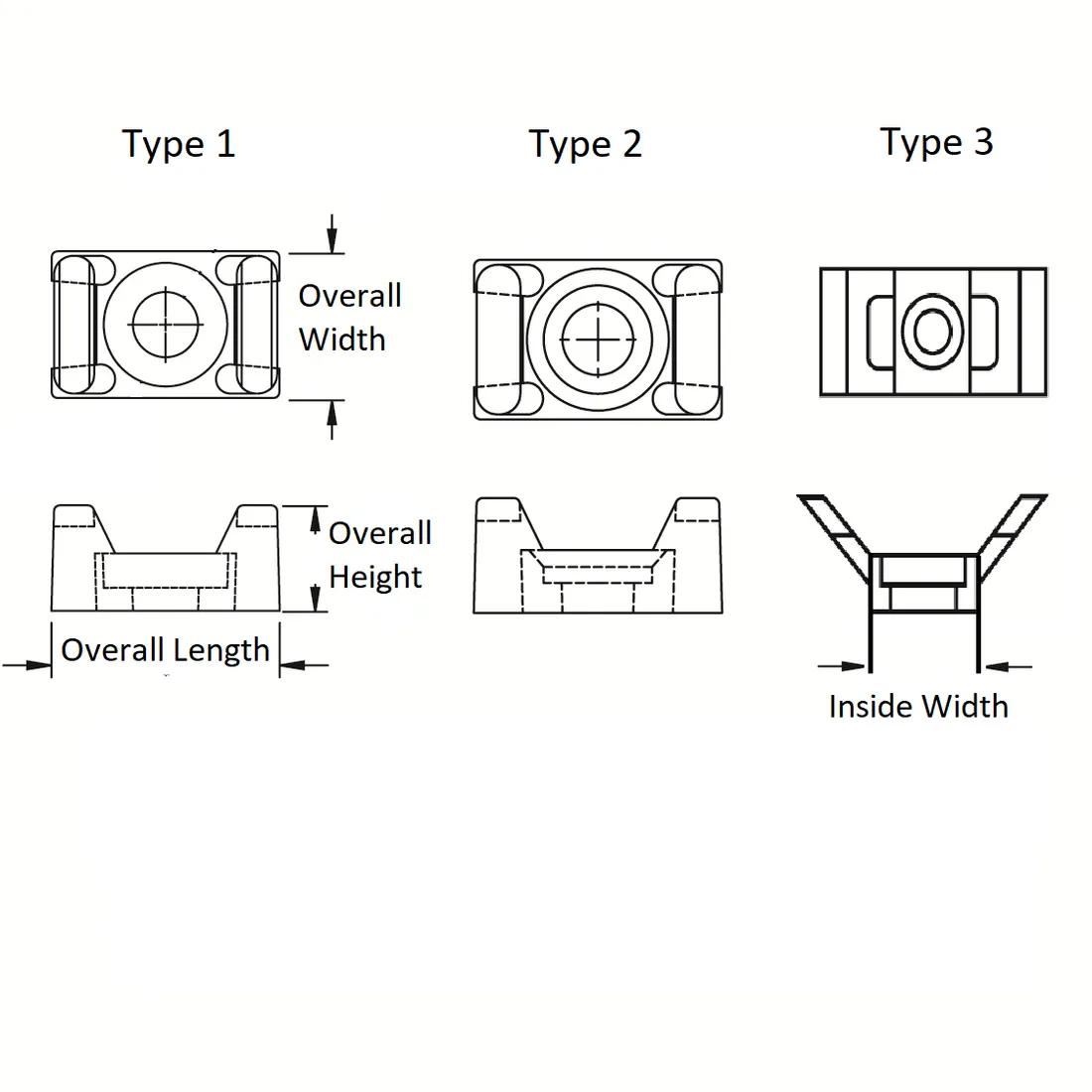

Item Code | Maximum Cable Bundle Diameter | Colour | Material | Overall Length | Mounting Hole Diameter | Overall Height | Type | Inside Width | Material Flammability Standard | Minimum Cable Bundle Diameter | Overall Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
460339 | 9.0mm | Natural | Nylon 6/6 | 30.0mm | 5.2mm | 11.6mm | 3 | 9.3mm | UL94 V-2 | 2.4mm | 14.7mm | |
494650 | 4.8mm | Black | Nylon 6/6 | 15.0mm | 3.0mm | 7.0mm | 2 | 5.0mm | UL94 V-2 | 2.4mm | 10.0mm | |
460338 | 9.0mm | Natural | Nylon 6/6 | 23.0mm | 5.3mm | 17.5mm | 3 | 9.5mm | UL94 V-2 | 2.4mm | 13.8mm | |
494652 | 9.0mm | Black | Nylon 6/6 | 23.0mm | 5.3mm | 17.5mm | 3 | 9.5mm | UL94 V-2 | 2.4mm | 13.8mm | |
460337 | 9.0mm | Natural | Nylon 6/6 | 23.0mm | 6.0mm | 9.8mm | 2 | 9.0mm | UL94 V-2 | 2.4mm | 16.0mm | |
460335 | 4.8mm | Natural | Nylon 6/6 | 19.0mm | 3.4mm | 5.0mm | 1 | 5.0mm | UL94 V-2 | 2.4mm | 9.5mm | |
460336 | 4.8mm | Natural | Nylon 6/6 | 15.0mm | 3.0mm | 7.0mm | 2 | 5.0mm | UL94 V-2 | 2.4mm | 10.0mm | |
494651 | 9.0mm | Black | Nylon 6/6 | 23.0mm | 6.3mm | 9.8mm | 2 | 9.0mm | UL94 V-2 | 2.4mm | 16.0mm | |
494649 | 4.8mm | Black | Nylon 6/6 | 19.0mm | 3.4mm | 5.0mm | 1 | 5.0mm | UL94 V-2 | 2.4mm | 9.5mm |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
460339
Maximum Cable Bundle Diameter
9.0mm
Colour
Natural
Material
Nylon 6/6
Overall Length
30.0mm
494650
Maximum Cable Bundle Diameter
4.8mm
Colour
Black
Material
Nylon 6/6
Overall Length
15.0mm
460338
Maximum Cable Bundle Diameter
9.0mm
Colour
Natural
Material
Nylon 6/6
Overall Length
23.0mm
494652
Maximum Cable Bundle Diameter
9.0mm
Colour
Black
Material
Nylon 6/6
Overall Length
23.0mm
Per page:
1–5 of 11
